Smart Box

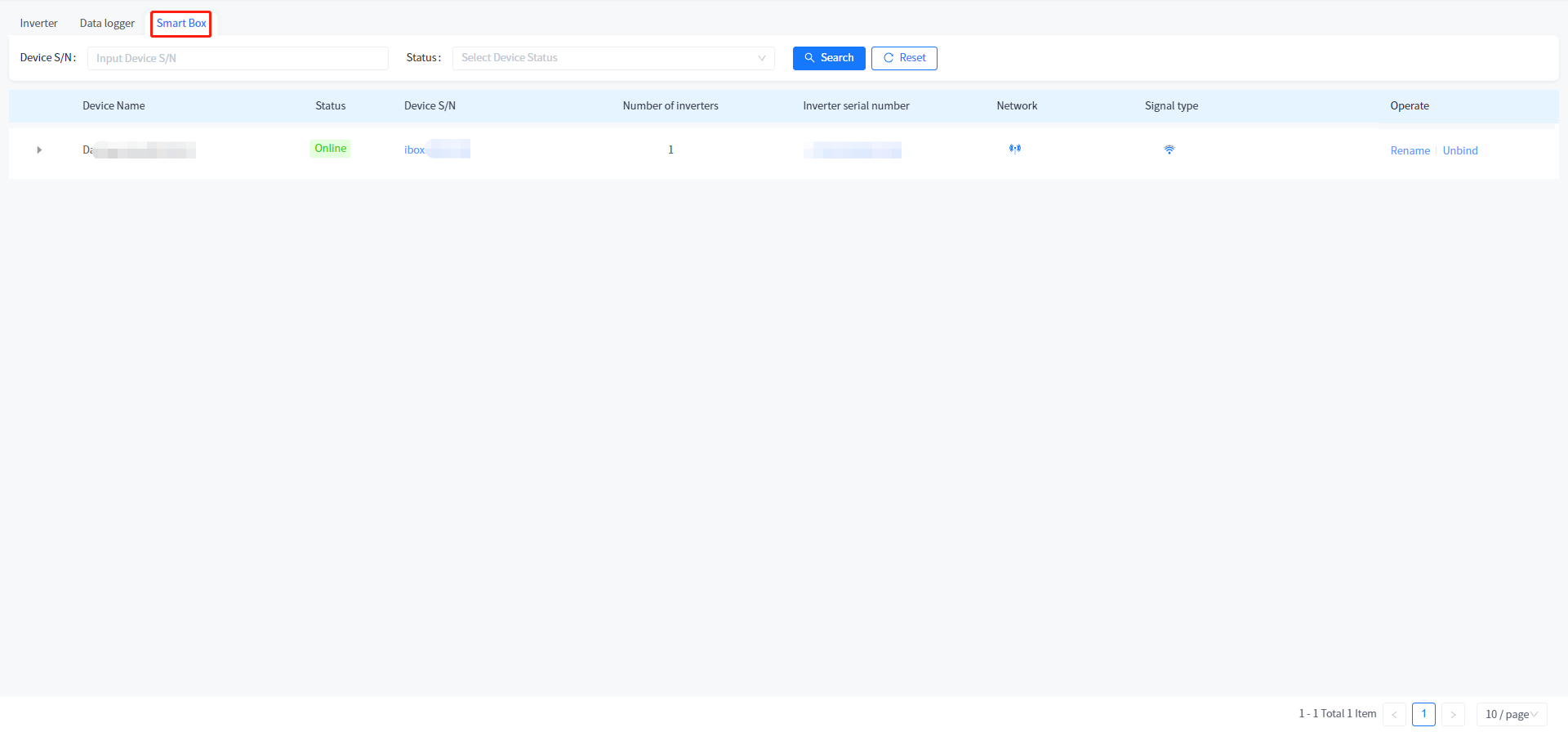

  This system supports the addition and association of plants to Smart Box devices, as well as data viewing and parameter configuration of associated heat pump and charging station devices under Smart Box.

Summary and Details of Charging Stations

① Click the device information button to enter the associated device list page.

② Click on the Smart Box tab at the top to enter the Smart Box device list page.

③ Click the expand button on the left side.

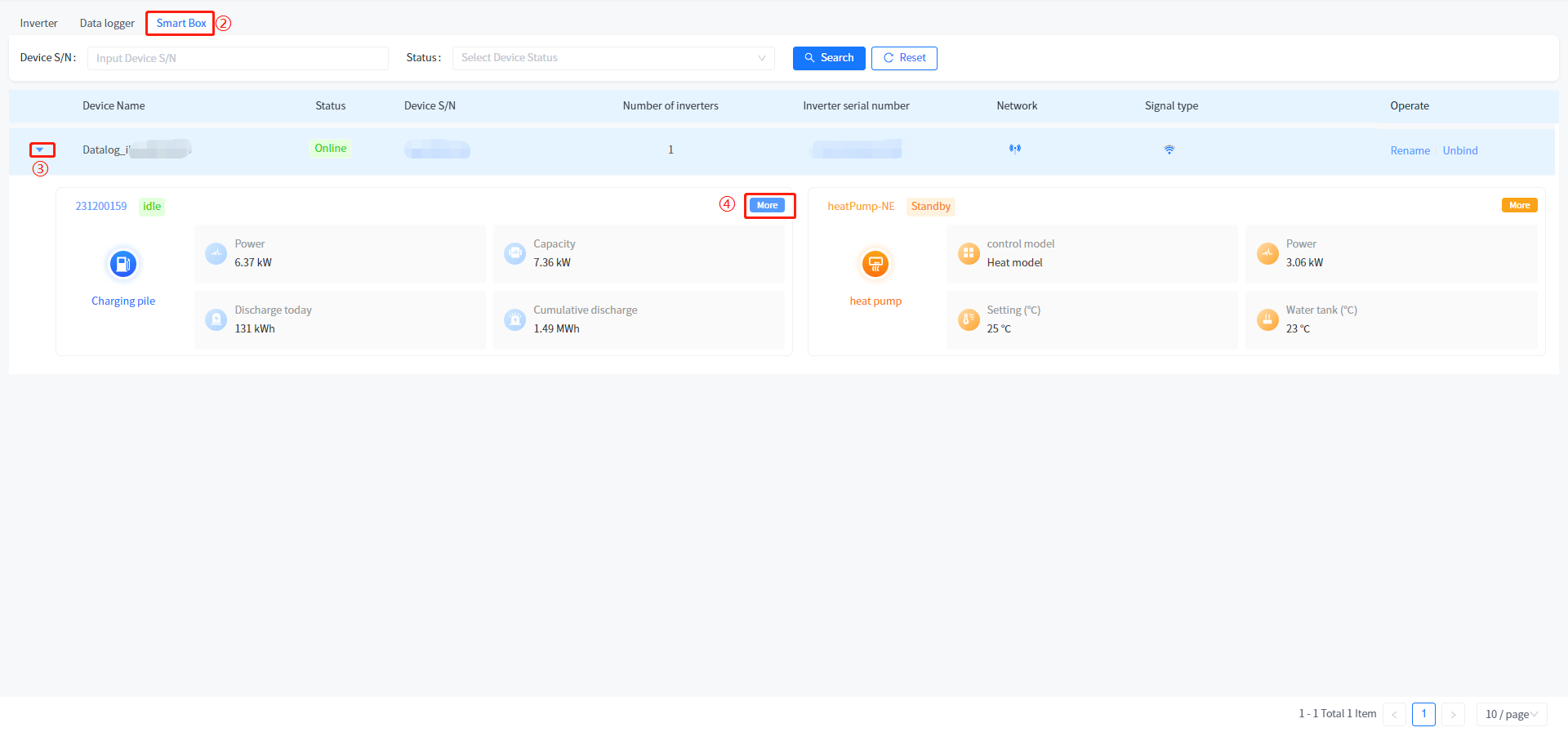

④ Click the [More] button in the upper right corner of the charging station summary data to enter the charging station summary page, or click on the device serial number in the charging station data to directly view the detailed information of the device.

Charging Station Parameter Configuration

① Click the device information button to enter the associated device list page.

② Click on the Smart Box tab at the top to enter the Smart Box device list page.

③ Click the expand button on the left side.

④ Click on the device serial number in the charging station data to enter the detailed information page of the charging station device.

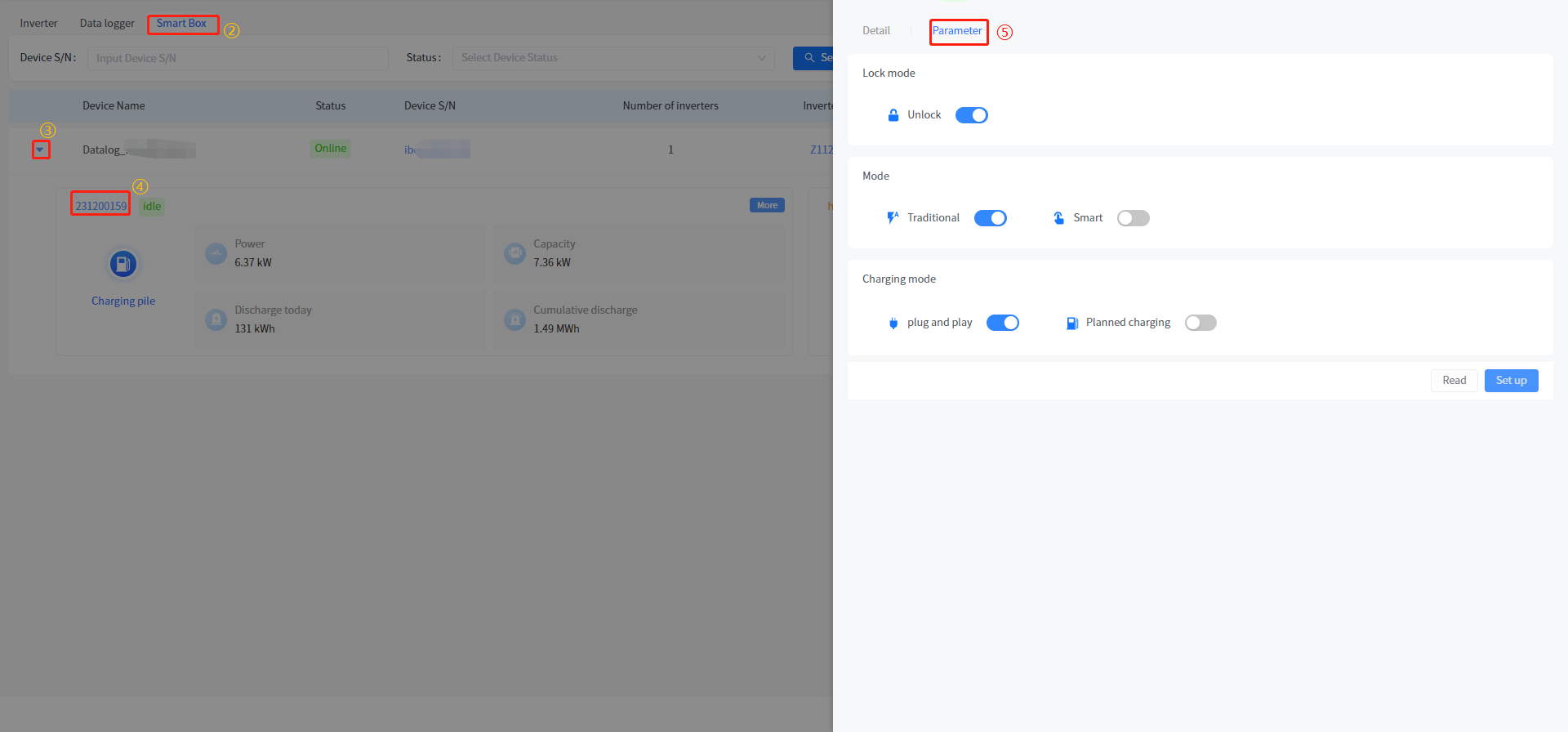

⑤ Click the [Configuration] button at the top of the pop-up page to set parameters.

Summary and detailed view of heat pumps

① Click the device information button to enter the associated device list page.

② Click on the Smart Box tab at the top to enter the Smart Box device list page.

③ Click the expand button on the left side.

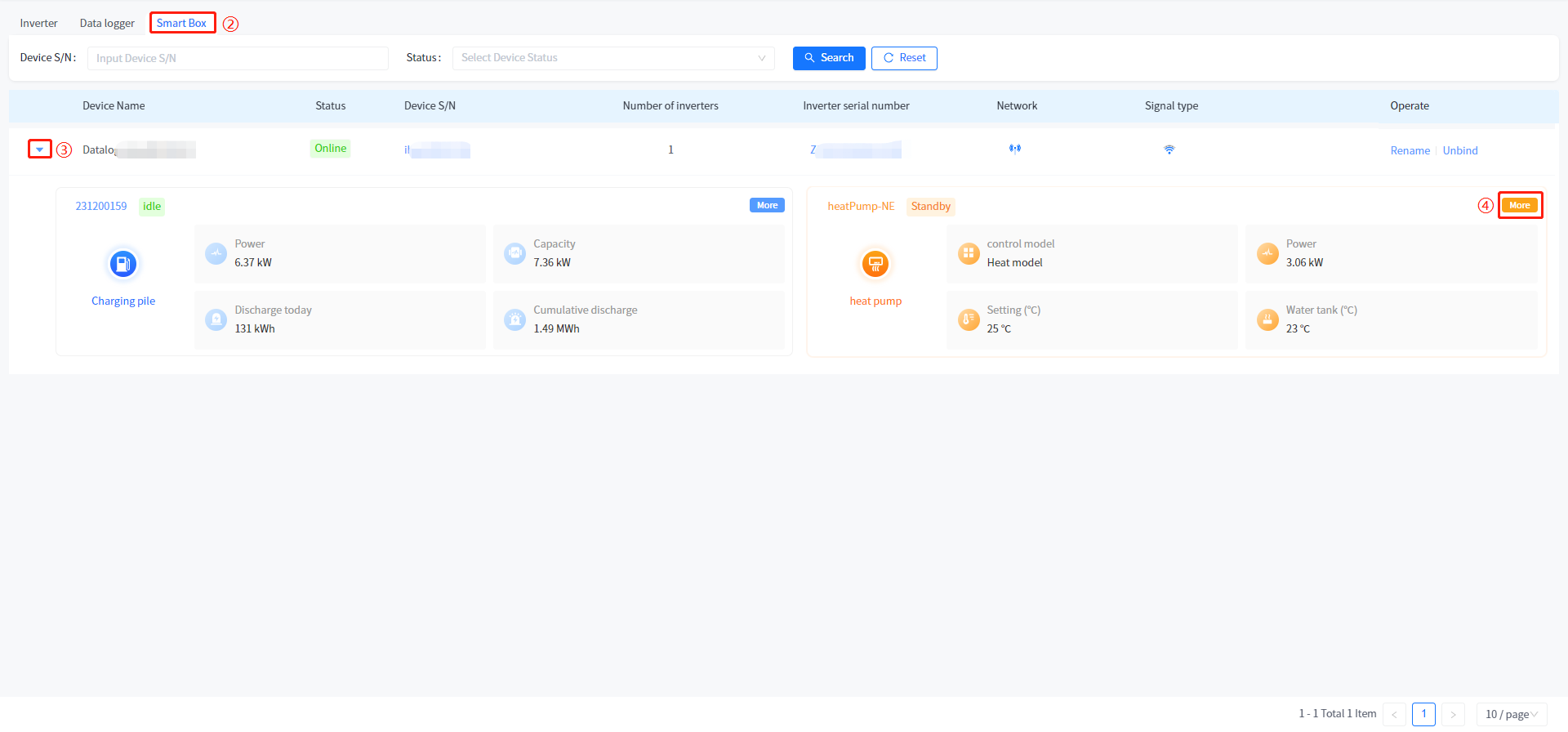

④ Click the [More] button in the upper right corner of the heat pump summary data to enter the charging pile summary page, or click on the device serial number in the heat pump pile data to directly view the detailed information of the device.

Heat pump parameter configuration

① Click the device information button to enter the associated device list page.

② Click on the Smart Box tab at the top to enter the Smart Box device list page.

③ Click the expand button on the left side.

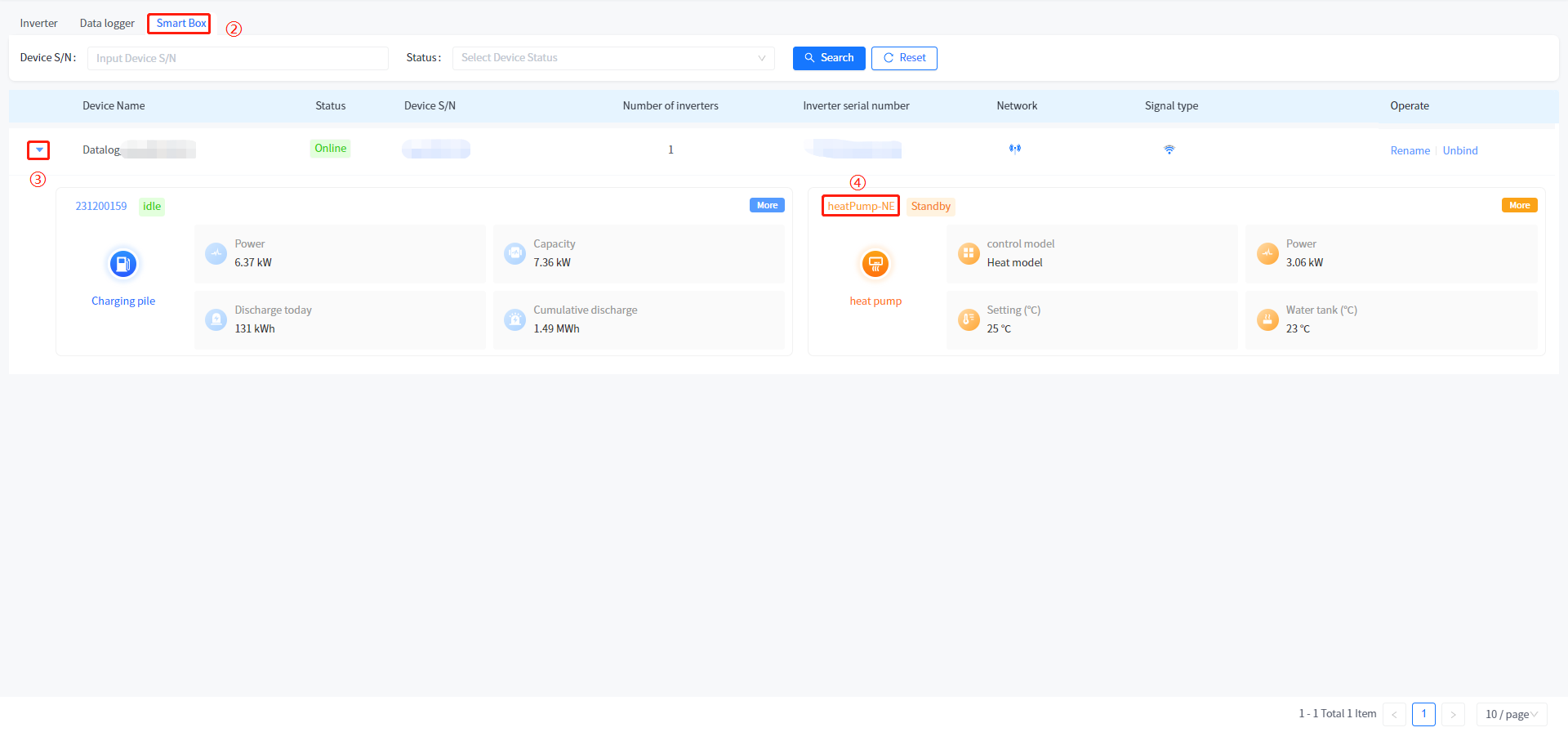

④ Click on the device serial number in the charging station data to enter the detailed information page of the heat pump device.

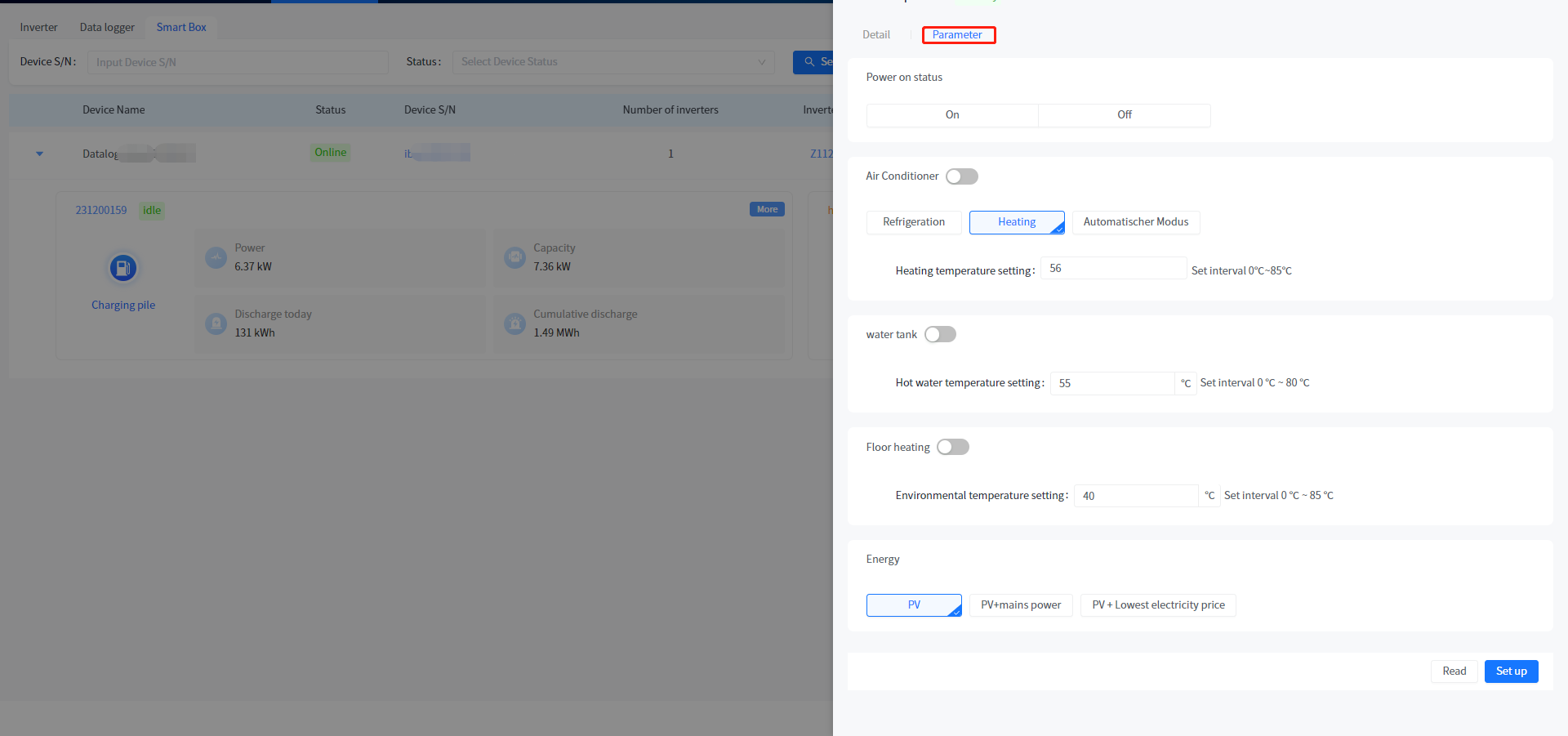

⑤ Click the [Configuration] button at the top of the pop-up page to set parameters.
