Command control

Batch instruction control

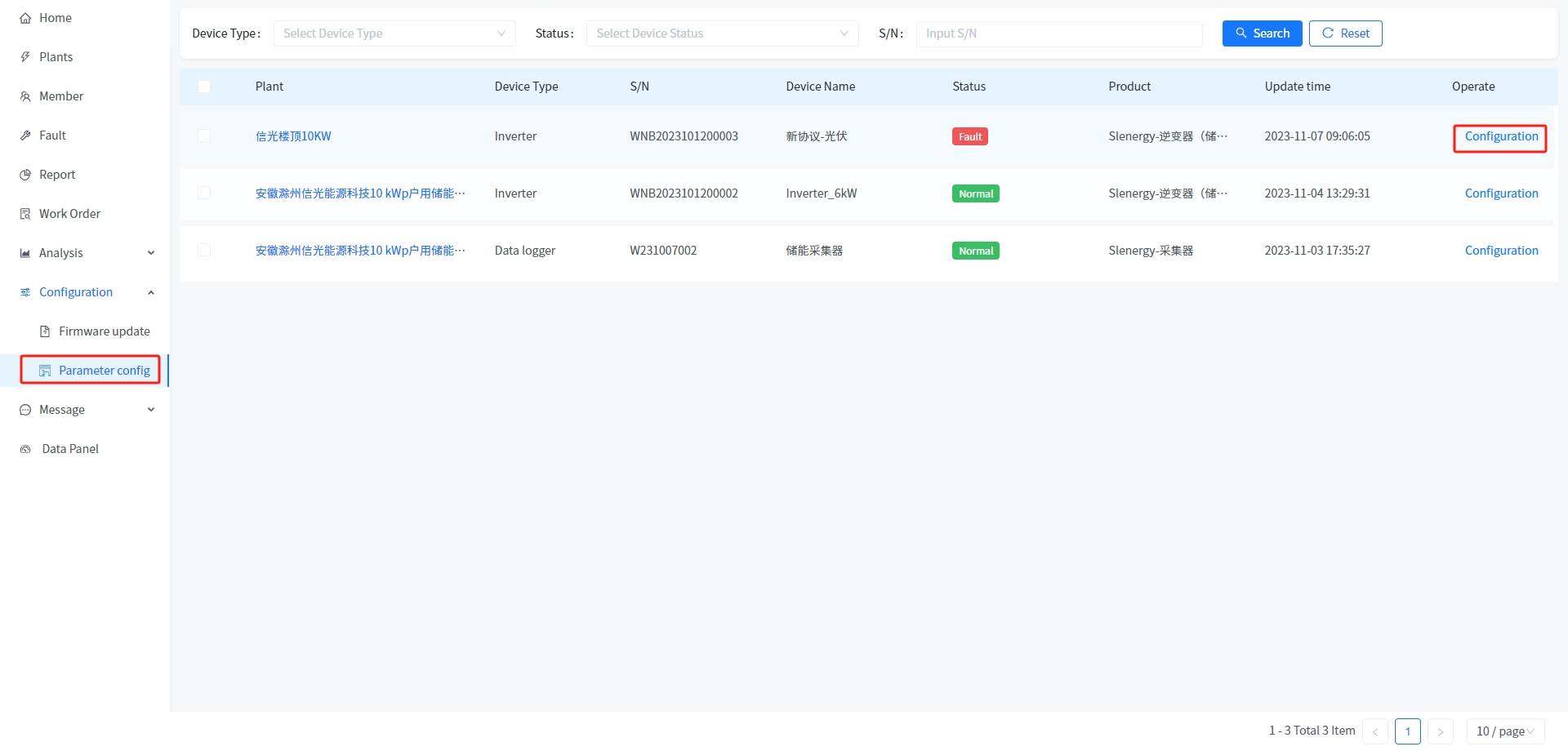

① Enter Configuration - Configuration Management - Command Control Module.

② Click on the [Configuration] button in the device operation bar.

③ On the pop-up page, click the [Read] button for the instruction to be transmitted.

④ After entering the modified content, click the [Settings] button.

Single instruction control

① Enter Configuration - Configuration Management - Command Control Module.

② Click on the [Configuration] button in the device operation bar.

③ In the pop-up page, click on the [Single Instruction Control] tab.

④ After selecting the corresponding instruction content, click the [Send] button.

Control logs

① Enter Configuration - Configuration Management - Command Control Module.

② Click on the [Configuration] button in the device operation bar.

③ In the pop-up page, click on the [Control Logs] tab.

④ Click the [Details] button in the list item to view the details of the transmitted instructions or the returned results.
